JSW Surface pump

Keywords:

JSW/JET Series

Category:

JSW/JET Series

Description:

E-mail:

Tel:

WhatsApp:

Product Description
Operation Conditions

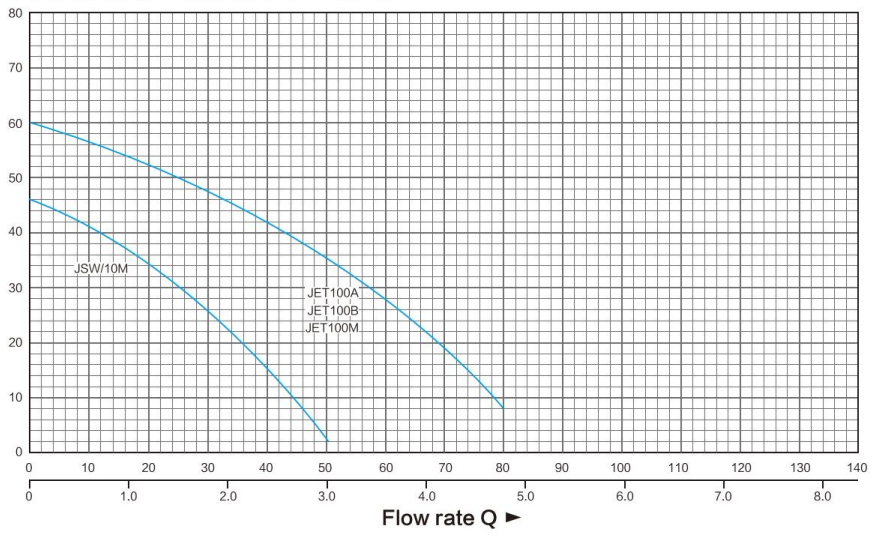

Performance

Applications
For water supply from wells or reservoirs.
For domestic use,for civil and industrial applications.
For garden use and irrigation.

Motor and Pump
Rewindable motor
Three-phase:380V-415V/50Hz
Single-phase:220V-240V/50Hz

Options on request
Special mechanical seal
Other voltages or frequency 60 Hz

Warranty:1 year
(according to our general sales conditions).
Maximum fluid temperature up to +40℃.
Maximum sand content:0.25%.

MODEL	DN1	DN2	DIMENSIONS(mm)
MODEL	DN1	DN2	n	h	f
JSWm10H	1"	1"	190	208	423
JSWm12H	1"	1"	196	208	423
JSWm15H	1"	1"	208	235	505
JSWm10M	1"	1"	190	208	423
JSWm15M	1/4"	1"	208	235	505

MODEL		P₂		DELIVERYn≈2850 r/ min
1 ~ 220V/240V	3 ~ 380V/415V	KW	HP	m³/h	0	0.6	1.2	1.8	2.4	3.0	3.6	4.2	4.8
1 ~ 220V/240V	3 ~ 380V/415V	KW	HP	I/ min	0	10	20	30	40	50	60	70	80
JSWm10H	JSW10H	0.75	1	H(m)	52	44	37	31.5	27	23	—	—	—
JSWm12H	JSW12H	0.9	1.25		64	55.5	48.5	42.5	37.5	34	—	—	—
JSWm15H	JSW15H	1.1	1.5		70	62	54.5	48	42.5	38	—	—	—
JSWm10M	JSW10M	0.75	1		40	35	31	27.4	24.2	21.6	19.5	18	17
JSWm15M	JSW15M	1.1	1.5		50	45	40.3	36	32	28.5	25	22.6	21
