4QGDA Deep well pump
Keywords:
AC submersible pump
Category:
Description:
- Product Description
- Operation Conditions

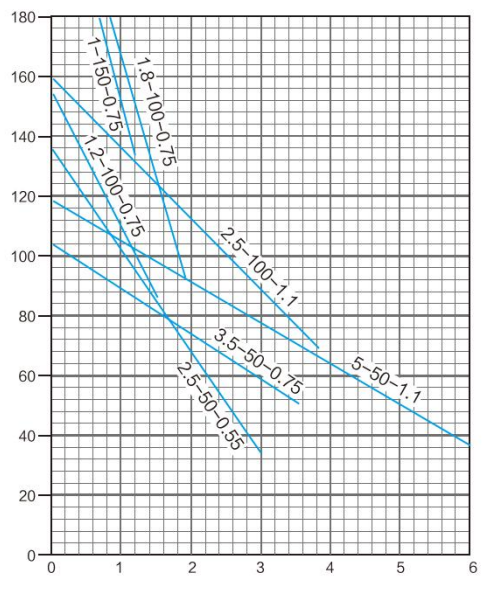

- Performance
-
Pump
Capacity from 1.0 to 2(m³/h)
Total head from50 to 160(m)
Motor
Adopted the NEMA standard
Power:0.37 to 1.1 kW (Single phase)
Insulation class:B
Protection grade:IP 68
Maximum Diamenter: ∅94.5mm
Highest temperature of liquid :35℃
-
Maximum fluid temperature up to+40℃.
Maximum sand content:3%.
Maximum well diameter:4".
-
SINGLE PHASE DIMENSIONS OF MOTOR UNIT

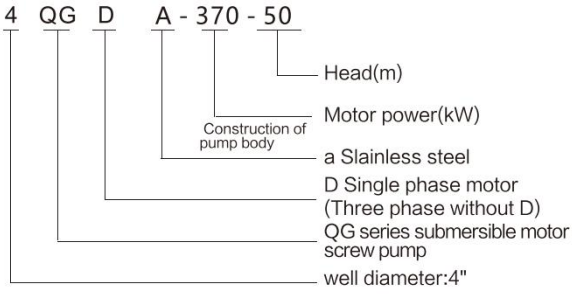

Type Size
Q_H_kWMotor
powerCapacity Voltage Max. Dia Pipe. dia Dimension kW Hp m³/h m v mm Inch mm QGDA 1-50-0.25 0.25 0.33 1 50 220/380 102 1 510x140x165 1.2-50-0.37 0.37 0.5 1.2 50 220/380 102 1 510x140x165 1.8-50-0.50 0.5 0.7 1.8 50 220/380 102 1 510x140x165 2.5-50-0.55 0.55 0.75 2.5 50 220/380 102 1 565x150x190 1.2-100-0.55 0.55 0.75 1.2 100 220/380 102 1 565x 150x190
