4"STM10
Keywords:
4”STM series
Category:
Description:
- Product Description
- Operation Conditions
- Performance
-
Identification Code
4STM10-6
4:Well diameter:4"
ST:submersible pump model
M:Single phase motor(three phase without M)
2:Capacity(m/h)
6:StageFields of Application
For water supply from wells or reservoir
For domestic use, for civil and industrial application
For garden use and irrigationAccessories
Control switch, waterproof glue. -
Technical Data
Suitable fluids
Clear, free from solid or abrasive substances,
Chemicallyu neutral and close to the characteristics of water
Performance
Speed range:2900rpm
Fluid temperature range:-10℃~40℃
Max.Working pressure:40bar
Ambient Temperature
Permissible up to 40℃
Power
Single phase:1~240V/50Hz,50Hz
three-phase:380V~415V/50Hz,60Hz
Motor
Degree of protection:IP68
Insulation class: B
Construction Materials
Casing both of pump and motor, pump shaft:stainless steel AISI304
Outlet and Inlet:bronze
Impeller and diffuser, non-return valve:thermoplastic resin PPO -

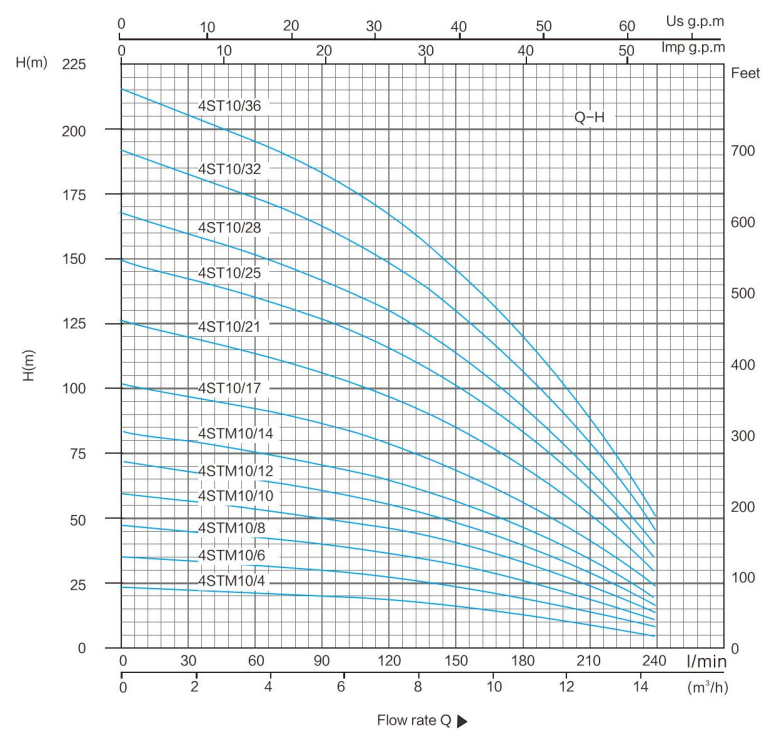

Performance chart n≈2850rpm
PERFORMANCE DATA 50Hz
MODEL P2 DELIVERY n≈2850 l/min 1~
220-240V3~
380-415VKW HP m3/h 0 1.8 3.6 5.4 7.2 9.0 10.8 12.6 14.4 l/min 0 30 60 90 120 150 180 210 240 4STM10/4 4ST10/4 0.55 0.75 Head
(m)24 23 22 20 19 16 13 10 6 4STM10/6 4ST10/6 0.75 1.0 36 34 32 30 28 24 20 15 8 4STM10/8 4ST10/8 1.1 1.5 48 46 43 41 37 33 27 20 11 4STM10/10 4ST10/10 1.5 2.0 60 57 54 51 47 41 34 25 14 4STM10/12 4ST10/12 2.2 3.0 72 69 65 61 56 49 40 30 17 4STM10/14 4ST10/14 2.2 3.0 84 80 76 71 65 57 47 35 20 - 4ST10/17 3.0 4.0 102 97 92 86 79 69 57 42 24 - 4ST10/21 4.0 5.5 126 120 114 107 98 86 71 52 30 - 4ST10/25 5.5 7.5 150 143 135 127 117 102 84 62 35 - 4ST10/28 5.5 7.5 168 160 152 142 131 114 94 70 40 - 4ST10/32 7.5 10 192 133 173 163 149 131 108 80 45 - 4ST10/36 7.5 10 216 206 195 183 168 147 121 90 51 DIMENSIONS AND WEIGHTS
MODEL DN Dimensions Single phase
220-240V-
50HzThree phase
380-415V-
50HzLength(mm) Weight(kg) L1 L(S) L(T) G(S) G(T) 4STM10/4 4ST10/4 1"/1¼"/1½ 398 723 708 11 11 4STM10/6 4ST10/6 1"/1¼"/1½ 472 819 799 13 12 4STM10/8 4ST10/8 1"/1¼"/1½ 548 935 895 16 14 4STM10/10 4ST10/10 1"/1¼"/1½ 624 1071 1001 19 16 4STM10/12 4ST10/12 1"/1¼"/1½ 700 1236 1137 24 19 4STM10/14 4ST10/14 1"/1¼"/1½ 776 1312 1213 24 20 - 4ST10/17 1"/1¼"/1½ 890 - 1367 - 23 - 4ST10/21 1"/1¼"/1½ 1074 - 1625 - 27 - 4ST10/25 1"/1¼"/1½ 1226 - 1847 - 31 - 4ST10/28 1"/1¼"/1½ 1340 - 1961 - 32 - 4ST10/32 1"/1¼"/1½ 1492 - 2203 - 37 - 4ST10/36 1"/1¼"/1½ 1644 - 2355 - 39
