S150A
Keywords:
S150A
Category:
Description:
- Product Description
- Operation Conditions
- Performance
-
Applications
For water supply from wells or reservoir
For domestic use, for civil and industrial application
For garden use and irrigation
Motor and Pump
RRewindable motor or Full obturated screen motor
Three-phase:380V-415V/50Hz
Direct start(1cable)
Star-delta start(2cable)
Equip with start contol box or digital auto-control box
NEMA dimension standards
Curve tolerance according to ISO 9906Options on request
Special mechanical seal
Other voltages or frequency 60HzWarranty:1 year
(according to our general sales conditions).
-
Maximum fluid temperature up to +50℃
Maximum sand content:0.5%
Maximum immersion:100m.
Minimum well diameter:6" -

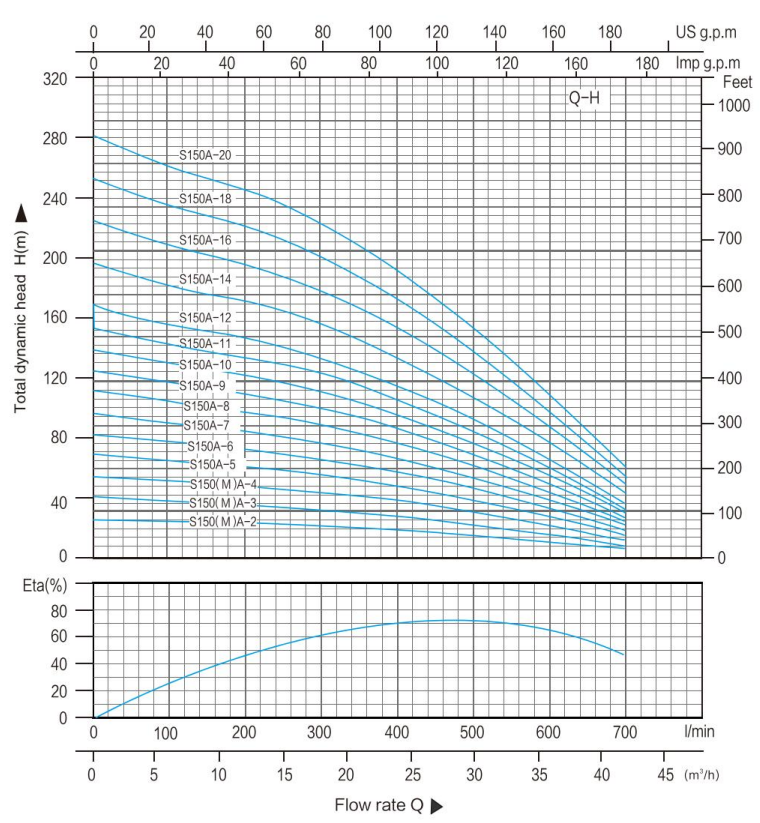

PERFORMANCE DATA 50Hz
Model P₂ DELIVERY n≈2850 l/ min 1~
220V/240V3~
380V/415VkW HP m³/h 0 6 12 18 24 30 36 42 I/ min 0 100 200 300 400 500 600 700 S150MA-2 S150A-2 3 4 Head
(m)28 26 25 22 19 15 11 S150MA-3 S150A-3 4 5.5 42 39 37 33 29 23 16 9 S150MA-4 S150A-4 5.5 7.5 57 53 49 45 39 31 22 12 - S150A-5 7.5 10 71 66 62 56 48 38 27 15 - S150A-6 7.5 10 85 79 74 67 58 46 33 18 - S150A-7 9.2 12.5 99 92 86 78 68 54 38 21 - S150A-8 11 15 113 105 99 89 77 61 44 24 - S150A-9 11 15 127 118 111 100 87 69 49 27 - S150A-10 13 17.5 142 132 124 111 96 76 54 30 - S150A-11 15 20 156 145 136 123 106 84 60 33 - S150A-12 15 20 170 158 148 134 116 92 65 36 - S150A-14 18.5 25 198 184 173 156 135 107 76 42 - S150A-16 18.5 25 226 210 198 178 154 122 87 48 - S150A-18 22 30 255 234 222 201 174 138 98 54 - S150A-20 22 30 283 263 247 223 193 153 109 60 MODEL DN Dimensions(mm) Weight(kg) 1~
220V/240V3~
380V/415VP M(S) M(T) T(S) T(T) P M(S) M(T) T(S) T(T) S150MA-2 S150A-2 3"/4" 575 586 556 1161 1131 25.1 38.8 35.9 63.9 61 S150MA-3 S150A-3 3"/4" 690 616 586 1306 1276 30.9 41.7 38.8 72.6 69.7 S150MA-4 S150A-4 3"/4" 805 999 616 1471 1421 36.7 46.5 41.7 83.2 78.4 - S150A-5 3"/4" 920 - 666 - 1576 42.6 - 46.5 - 89.1 - S150A-6 3"/4" 1035 - 666 - 1701 48.4 - 46.5 - 94.9 - S150A-7 3"/4" 1150 - 715 - 1866 54.2 - 51.3 - 105.5 - S150A-8 3"/4" 1265 - 786 - 2051 60 - 56.1 - 116.1 - S150A-9 3"/4" 1380 - 786 - 2166 65.9 - 56.1 - 122 - S150A-10 3"/4" 1495 - 836 - 2331 71.7 - 60.9 - 132.6 - S150A-11 3"/4" 1610 - 886 - 2496 77.5 - 65.7 - 143.2 - S150A-12 3"/4" 1725 - 886 - 2611 83.4 - 65.7 - 149.1 - S150A-14 3"/4" 1955 - 936 - 2891 95 - 70.5 - 165.5 - S150A-16 3"/4" 2185 - 936 - 3121 106.7 - 70.5 - 177.2 - S150A-18 3"/4" 2415 - 1011 - 3426 118.3 - 77.7 - 196 - S150A-20 3"/4" 2645 - 1011 - 3656 130 - 77.7 - 207.7
