3.5"STM2 Deep well pump

Keywords:

3.5”STM series

Category:

3.5”STM series

Description:

Power:0.25 to 1.5kw(Single phase)

E-mail:

Tel:

WhatsApp:

Product Description
Operation Conditions
Performance

Pupm:
Qmax:2.8(m3/h)
Capacity from0.75 to 1.5(m³/h)
Total head from 138 to 38(m)

Motor:
Power:0.25to 1.5kw(Single phase)
Insulation class:B
Protection grade:IP68
Maximum diameter:φ83mm
Highest temperature of liquid:35℃

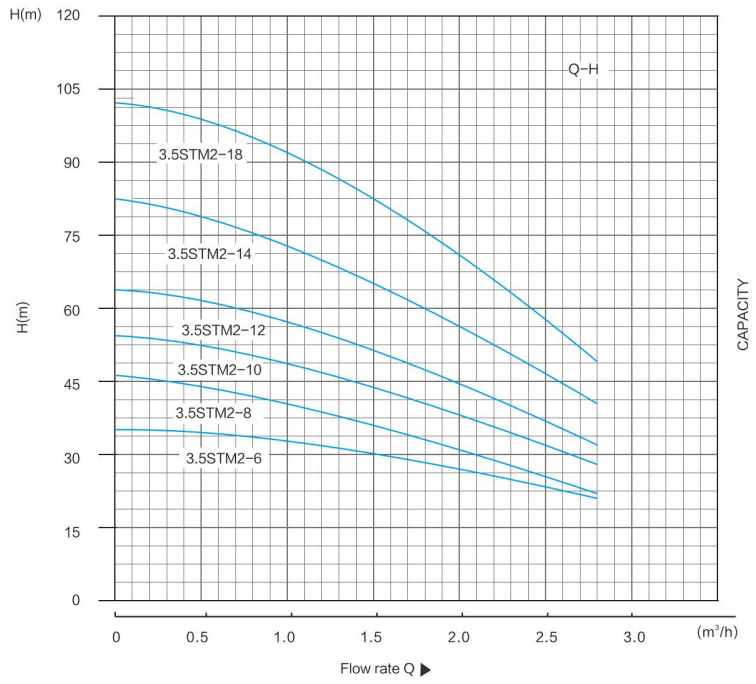

Performance chartn≈2850rpm

PERFORMANCE DATA 50Hz

MODEL		POWER		Capacity and Head
SINGLE	THREE	kW	HP	m³/h	0	0.5	0.75	1	1.5	2.8
SINGLE	THREE	kW	HP	l/ min	0	8	13	17	25	43
3.5STM2-6		0.37	0.5	Head	35	30	28	26	24	20
3.5STM2-8		0.55	0.75		46	41	36	32	28	22
3.5STM2-10	3.5ST2-10	0.75	1		58	53	46	40	33	28
3.5STM2-12	3.5ST2-12	1.1	1.5		70	42	54	48	40	34
3.5STM2-14	3.5ST2-14	1.1	1.5		81	76	70	63	56	40
3.5STM2-18	3.5ST2-18	1.5	2		104	85	80	65	57	50
