3"STM5 Deep well pump

Keywords:

3”STM series

Category:

3”STM series

Description:

Power:0.25 to 1.5kw(Single phase)

E-mail:

Tel:

WhatsApp:

Product Description
Operation Conditions
Performance

Pump:
Qmax:7.6(m/h)
Capacity from1 to 7(m³/h)
Total head from 67 to 19(m)

Motor:
Power:0.25 to 1.5kw(Single phase)
Insulation class:B
Protection grade:IP68

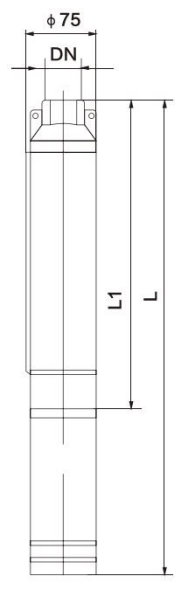

Maximum diameter:φ75mm
Highest temperature ofliquid:35℃
Maximum fluid temperature up to +35℃
Maximum sand content:0.25%
Minimum well diameter:3"

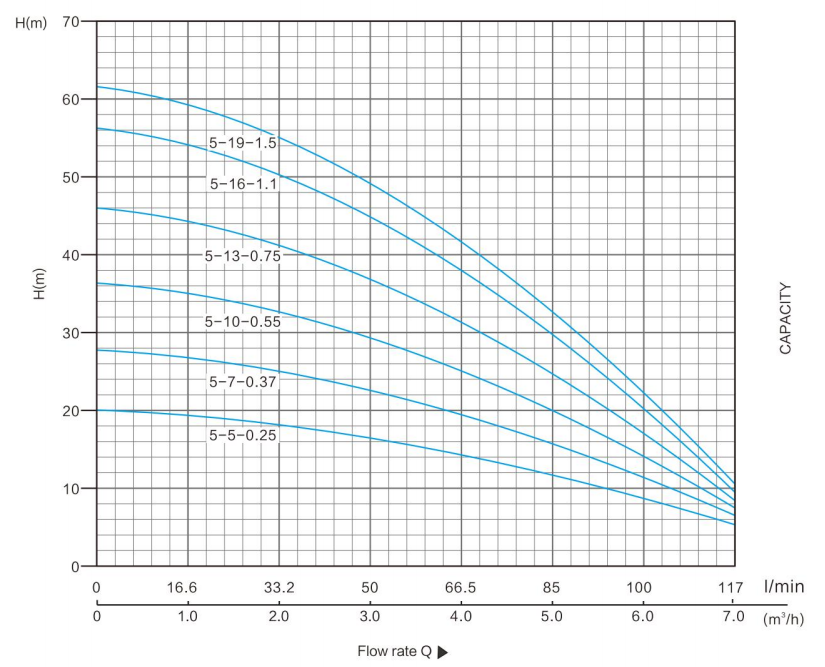

Performance chartn≈2850rpm

PERFORMANCE DATA 50Hz

MODEL	POWER		Capacity and Head
Three phase 380-415V- 50Hz	kW	HP	m³/h	0	0.8	1.8	3	4.2	5	5.5	6	7
Three phase 380-415V- 50Hz	kW	HP	I/ min	0	14	30	50	70	85	9.2	100	117
3STM5-5-0.25	0.25	0.33	Head	19	18	17	16	14	10	8	6	5
3STM5-7-0.37	0.37	0.5		27	25	25	24	21	17	15	12	6
3STM5-10-0.55	0.55	0.75		36	45	34	32	27	23	19	15	7
3STM5-13-0.75	0.75	1		46	54	44	43	35	30	26	21	8
3STM5-16-1.1	1.1	1.5		56	35	53	52	44	38	33	26	9
3STM5-19-1.5	1.5	2		67	65	65	61	52	44	35	29	10
