4"STM16
Keywords:
4”STM series
Category:
Description:
- Product Description
- Operation Conditions
- Performance
-
Components Material Pump external casing AISI 304ss Delivery casing AISI304ss Suction lantern AISI 304ss Stage casing AISI 304ssPlastic. PPO Impeller AISI304ssPlastic. PPO Shaft AISI316ss Filter AISI 304ss Wear ring AISI304ss Motor external casing AISI 304ss Former cover Cast-Cu ASTM280 Bottom support Cast-Cu ASTM280 Mechanical seal Special seal for deep well(carbon-SIC/TC) Shaft AISE 316ss-C1045 Bearing NSK. NTN. CU Seal lubricant oil Oil for food machinery and pharmaceutical use. Accessories
Control switch, waterproof glue. -
Working Conditions
Water teperature up to 25
Minimum internal diamitr of well:102mm
Maxmum immersion depth:40mFor water supply from wells or reservoir
For domestic use, for civil and industrial application
For garden use and irrigation -

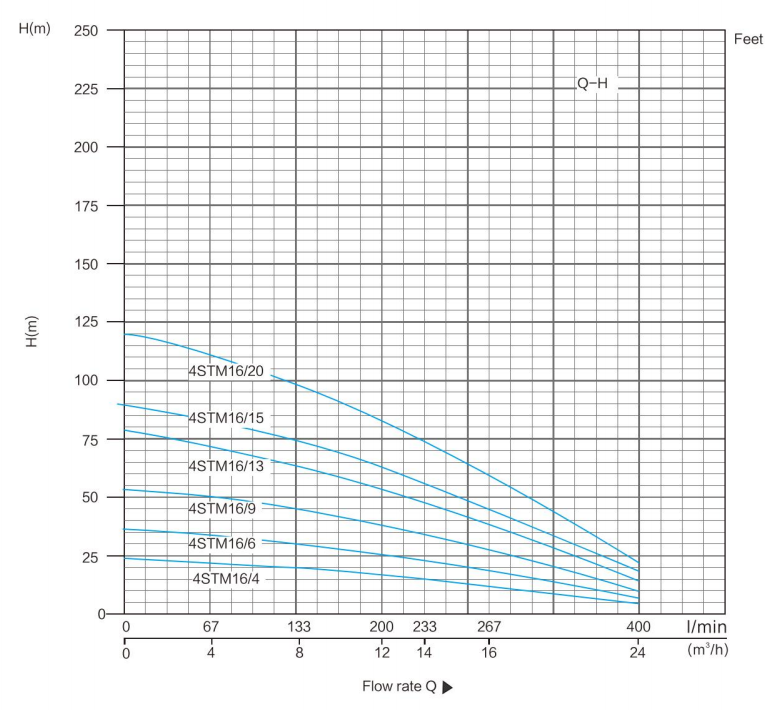

Performance chart n≈2850rpm
PERFORMANCE DATA 50Hz
MODEL P2 DELIVERY n≈2850 l/min 1~
220-240V3~
380-415VKW HP m3/h 0 4 8 12 14 16 24 l/min 0 67 133 200 233 267 400 4ST16/4 1.1 1.5 Head
(m)24 22 20 17 15 12 4 4STM16/4 4ST16/6 1.5 2 36 33 29 25 22 47 7 4STM16/6 4ST16/9 2.2 3 54 50 44 38 34 19 10 4STM16/9 4ST16/13 3 4 78 72 64 55 49 28 14 - 4ST16/15 4 5.5 90 83 74 63 56 40 17 - 4ST16/20 5.5 7.5 120 111 98 84 75 62 22 DIMENSIONS AND WEIGHTS
MODEL DN Dimensions L1 L(S) L(T) 4ST(M)16-4 1" 1½" 512 914 874 4ST(M)16-6 1" 1½" 650 1071 1051 4ST(M)16-9 1" 1½" 857 1383 1308 4ST16-13 1" 1½" 1133 1613 4ST16-15 1" 1½" 1258 1618 4ST16-20 1" 1½" 1603 2203
