5"STM10
Keywords:
5”STM series
Category:
Description:
- Product Description
- Operation Conditions
- Performance
-
Pupm
Qmax20(m3/h)
Capaciy from Bto 12(m3/h)
Total head from 210 to 44(m)
Motor
Power:3 to 11kW(Single phase)
Insulation class: B
Prolection grade:IP58
Maximum dameter:φ125mm
Highest lemperature of lquid:35℃
-

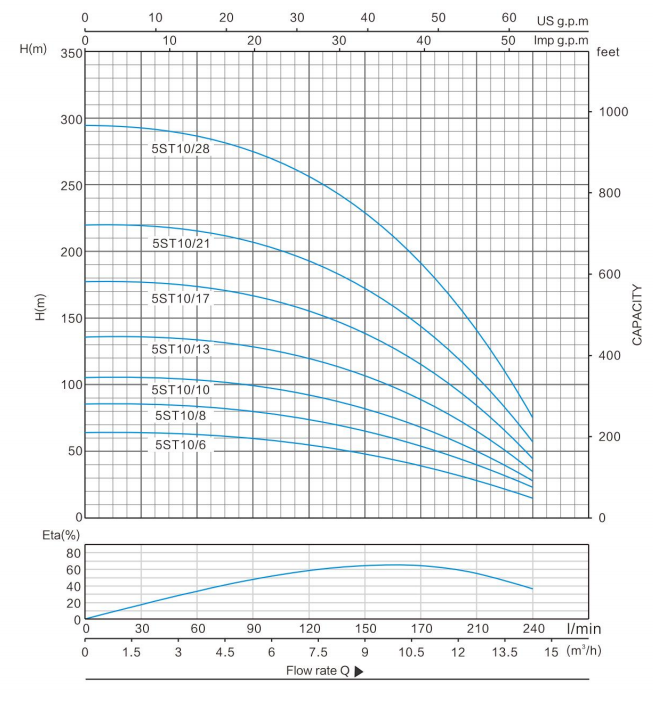

PERFORMANCE DATA 50Hz
MODEL P2 DELIVERY n≈2850 l/min 1~
220V/240V3~
380V/415VkW HP m3/h 0 1.8 3.6 5.4 7.2 9.0 10.8 12.6 14.4 l/min 0 30 60 90 120 150 180 210 240 5STM10/6 5ST10/6 1.5 2 Head(m)
63 63 62 59 55 49 40 29 16 5STM10/8 5ST10/8 2.2 3 84 84 83 79 73 65 53 39 22 5STM10/10 5ST10/10 3 4 105 105 103 99 91 81 67 48 27 — 5ST10/13 4 5.5 136 137 134 128 119 105 87 63 35 — 5ST10/17 5.5 7.5 178 179 175 168 155 138 114 82 46 — 5ST10/21 7.5 10 220 221 217 207 192 170 140 101 57 — 5ST10/28 11 15 293 295 289 276 256 227 187 135 76 DIMENSIONS AND WEIGHTS
MODEL DN DIMENSIONS(mm) WEIGHTS(kg) 1~
220-240V3~
380-415VP M(s) M(T) T(S) T(T) P M(s) M(T) T(S) T(T) 5STM10/5 5ST10/5 2" 460 377 377 837 837 4.7 14.5 14.5 19.2 19.2 5STM10/6 5ST10/6 2" 493 402 402 895 895 5.1 16.4 16.4 21.5 21.5 5STM10/8 5ST10/8 2" 560 437 437 997 997 5.5 19.6 19.6 25.1 25.1 5STM10/10 5ST10/10 2" 627 477 477 1104 1104 6.2 22.3 22.3 28.5 28.5 — 5ST10/13 2" 727 537 537 1264 1264 7.4 27.1 27.1 34.5 34.5 — 5ST10/16 2" 827 — 607 — 1434 8.7 — 32.5 — 41.2 — 5ST10/20 2" 961 — 677 — 1638 10.4 — 38.5 — 48.9 — 5ST10/25 2" 1128 — 817 — 1945 11.9 — 45.6 — 57.5 — 5ST10/30 2" 1295 — 927 — 2222 13.4 — 52.8 — 66.2
