5"STM15
Keywords:

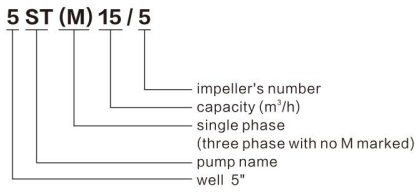

5”STM series
Category:
Description:
- Product Description
- Operation Conditions
- Performance
-
Pupm
Qmax:23(m3/h)
Capacity from 12 to 17(mm3/h)
Total head from 143 to 39(m)
Motor
Power:4 to 11kW(Single phase)
Insulation class: B
Protection grade:IP58
Maximum diameter: φ 125mm
Highest temperature of liquid:35°C
-

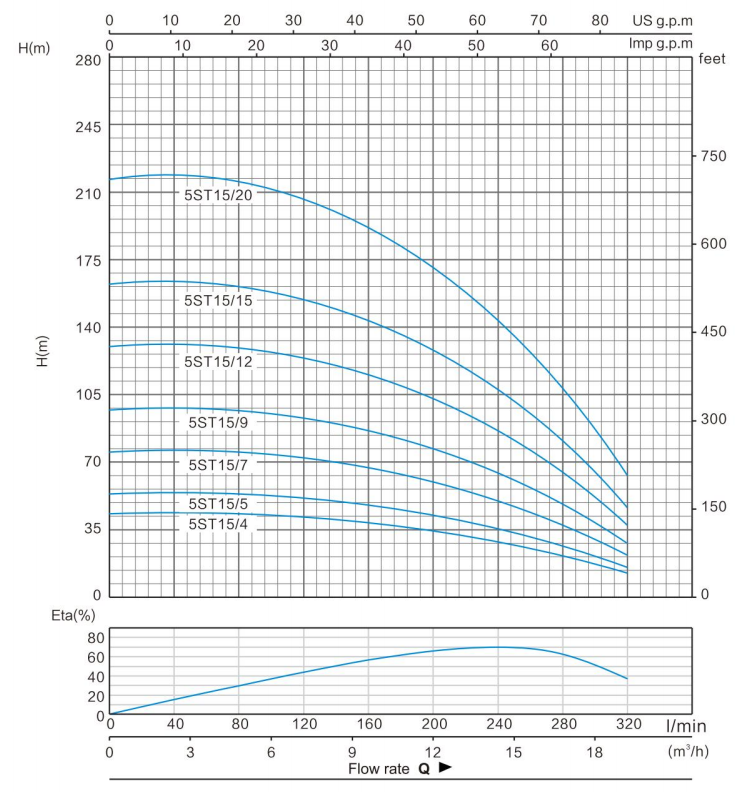

PERFORMANCE DATA 50Hz
MODEL P2 DELIVERY n≈2850 l/min 1~
220V/240V3~
380V/415VkW HP m3/h 0 2.4 4.8 7.2 9.6 12.0 14.4 16.8 19.2 l/min 0 40 80 120 160 200 240 280 320 5STM15/4 5ST15/4 1.5 2 Head(m)
43 44 43 41 38 34 29 22 13 5STM15/5 5ST15/5 2.2 3 54 55 54 51 48 43 36 27 17 5STM15/7 5ST15/7 3 4 76 77 75 72 67 60 50 38 23 — 5ST15/9 4 5.5 97 99 97 92 86 77 65 49 30 — 5ST15/12 5.5 7.5 130 131 129 123 115 103 86 65 40 — 5ST15/15 7.5 10 162 164 161 154 143 129 108 81 50 — 5ST15/20 11 15 216 219 215 205 191 172 144 108 67 DIMENSIONS AND WEIGHTS
MODEL DN DIMENSIONS(mm) WEIGHTS(kg) 1~
220-240V3~
380-415VP M(s) M(T) T(S) T(T) P M(s) M(T) T(S) T(T) 5STM15/4 5ST15/5 2" 2½" 487 402 402 889 889 4.9 16.4 16.4 21.3 21.3 5STM15/5 5ST15/6 2" 2½" 525 437 437 962 962 5.3 19.6 19.6 24.9 24.9 5STM15/7 5ST15/8 2" 2½" 601 477 477 1078 1078 5.7 22.3 22.3 28.0 28.0 — 5ST15/10 2" 2½" 677 537 537 1214 1214 6.6 27.1 27.1 33.7 33.7 — 5ST15/13 2" 2½" 791 — 607 — 1398 7.8 — 32.5 — 40.3 — 5ST15/16 2" 2½" 904 — 677 — 1581 9.1 — 38.5 — 47.6 — 5ST15/20 2" 2½" 1056 — 817 — 1873 10.3 — 45.6 — 55.9 — 5ST15/24 2" 2½" 1207 — 927 — 2134 11.6 — 52.8 — 64.4
