5"STM22
Keywords:
5”STM series
Category:
Description:
- Product Description
- Operation Conditions
- Performance
-
Applications
For water supply from wells or reservoirs
For domestic use, for civil and industrial applications
For garden use and irrigation
Motor and Pump
Rewindable motor
Single-phase: 220 - 240V/50Hz
Three-phase: 380- 415V/50Hz
Equip with start control box or digital auto-control box
Curve tolerance according to ISO 9906
Options on request
Special mechanical seal
Other voltages or frequency 60Hz
Single phase motor with built -in capacitor
-
Maximum fluid temperature up to +35°C
Maximum sand content: 0.25%
Minimum well diameter: 5"
-

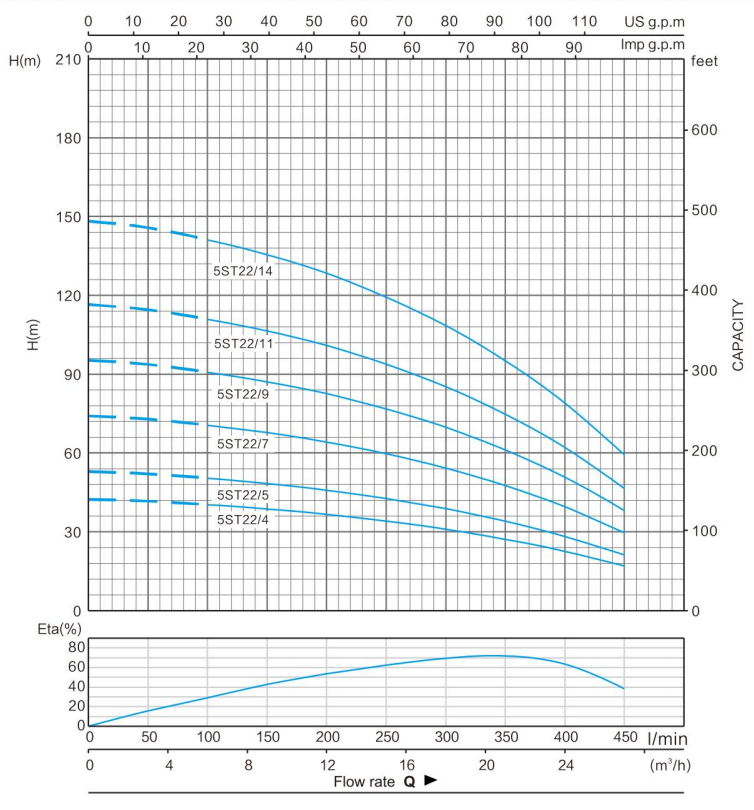

PERFORMANCE DATA 50Hz
MODEL P2 DELIVERY ≈2850 l/min 1~
220V/240V3~
380V/415VkW HP m3/h 0 3 6 9 12 15 18 21 24 27 l/min 0 50 100 150 200 250 300 350 400 450 5STM22/4 5ST22/4 2.2 3 H(m)
43 41 40 38 36 34 31 26 21 14 5STM22/5 5ST22/5 3 4 53 52 50 48 45 43 39 33 26 18 — 5ST22/7 4 5.5 75 72 70 67 64 60 54 46 37 25 — 5ST22/9 5.5 7.5 96 93 90 86 82 77 69 59 47 32 — 5ST22/11 7.5 10 117 114 110 105 100 94 85 72 57 39 — 5ST22/14 11 15 149 145 145 134 127 119 108 92 73 50 DIMENSIONS AND WEIGHTS
MODEL DN DIMENSIONS(mm) WEIGHTS(kg) 1~
220-240V3~
380-415VP M(s) M(T) T(S) T(T) P M(s) M(T) T(S) T(T) 5STM22/4 5ST22/4 2½" 481 437 437 918 918 5.2 19.6 19.6 24.8 24.8 5STM22/5 5ST22/5 2½" 527 477 477 1004 1004 5.6 22.3 22.3 27.9 27.9 — 5ST22/7 2½" 619 537 537 1156 1156 6.1 27.1 27.1 33.7 33.7 — 5ST22/9 2½" 711 — 607 — 1318 7.0 — 32.5 — 39.5 — 5ST22/11 2½" 803 — 677 — 1480 7.9 — 38.5 — 46.4 — 5ST22/14 2½" 940 — 817 — 1757 8.8 — 45.6 — 54.4
