5"STM30
Keywords:
5”STM series
Category:
Description:
- Product Description
- Operation Conditions
- Performance
-
Applications
For water supply from wells or reservoirs
For domestic use, for civil and industrial applications
For garden use and irrigation
Motor and Pump
Rewindable motor
Single-phase: 220 - 240V/50Hz
Three-phase: 380- 415V/50Hz
Equip with start control box or digital auto-control box
Curve tolerance according to ISO 9906
Options on request
Special mechanical seal
Other voltages or frequency 60Hz
Single phase motor with built-in capacitor
-
Operating conditions
Maximum fluid temperature up to +35°C
Maximum sand content: 0.25%
Minimum well diameter: 5" -

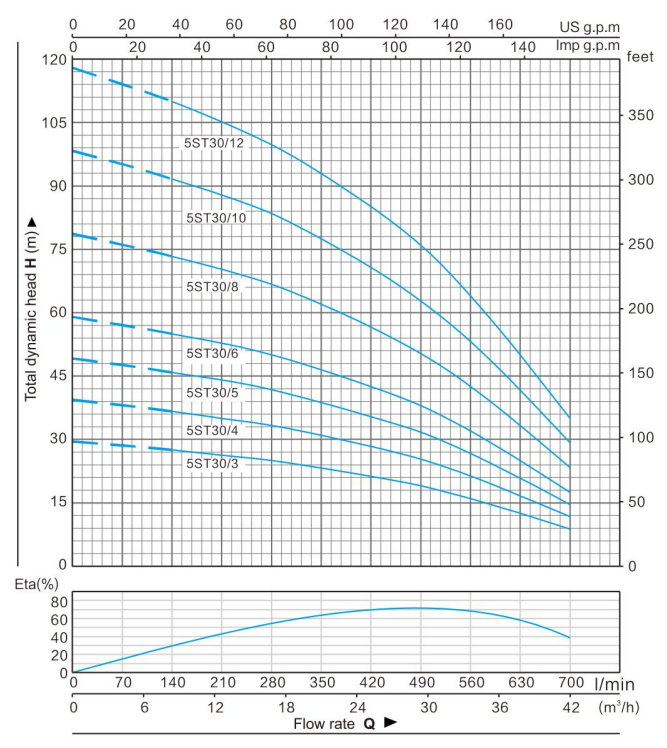

PERFORMANCE DATA 50Hz
MODEL P2 DELIVERY n≈2850 l/min 1~
220V/240V3~
380V/415VkW HP Q m³/h 0 4.2 8.4 12.6 16.8 21 25.2 29.4 33.6 37.8 42 l/min 0 70 140 210 280 350 420 490 560 630 700 5STM30/3 5ST30/3 2.2 3 (m) 29 29 28 26 25 23 21 19 16 13 9 5STM30/4 5ST30/4 3 4 39 38 37 35 33 31 28 25 21 17 12 — 5ST30/5 4 5.5 49 48 46 44 42 39 35 32 27 21 15 — 5ST30/6 5.5 7.5 59 57 55 52 50 46 43 38 32 25 17 — 5ST30/8 7.5 10 79 76 73 70 67 62 57 51 43 33 23 — 5ST30/11 11 15 108 105 101 96 92 85 78 70 59 46 32 DIMENSIONS AND WEIGHTS
MODEL DN DIMENSIONS(mm) WEIGHTS(kg) 1~
220-240V3~
380-415VP M(s) M(T) T(S) T(T) P M(s) M(T) T(S) T(T) 5STM30/3 5ST30/3 21/2" 460 437 437 897 897 4.9 19.6 19.6 24.5 24.5 5STM30/4 5ST30/4 21/2" 514 477 477 991 991 5.3 22.3 22.3 27.6 27.6 — 5ST30/5 21/2" 568 537 537 1105 1105 5.8 27.1 27.1 32.9 32.9 — 5ST30/6 21/2" 633 — 607 — 1229 6.7 — 32.5 — 39.2 — 5ST30/8 21/2" 730 — 677 — 1407 7.6 — 38.5 — 46.1 — 5ST30/11 21/2" 837 — 817 — 1654 8.5 — 45.6 — 54.1
