6SR18
Keywords:
6SR series
Category:
Description:
- Product Description
- Operation Conditions
- Performance
-
Applications
For water supply from wells or reservoir
For domestic use, for civil and industrial application
For garden use and irigation
Motor and Pump
Rewindable motor or Full obturated screen motor
Three-phase:380V-415V/50Hz
Direct start(1 cable)
Star-delta star(2 cable)
Equip with start contol box or digital
auto-control box
NEMA dimension standards
Curve tolerance according to ISO 2548Options on request
Special mechanical seal
Other coltages or frequency 60HzWarranty:1 year
(according to our general sales conditions).
-
Maximum fluid temperature up to +35°C
Maximum sand content:0.25%
Maximum immersion:100m.
Minimum well diameter:6" -

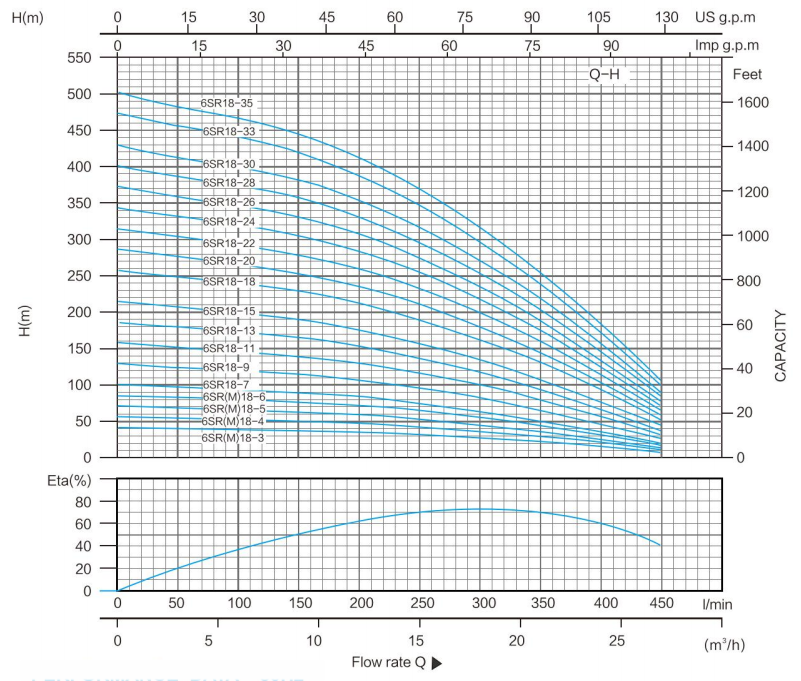

Performance chart n≈2850rpm
PERFORMANCE DATA 50Hz
MODEL P2 DELIVERY n≈2850 l/min 1~
220V/240V3~
380V/415VkW HP m³/h 0 3 6 9 12 15 18 21 24 27 l/min 0 50 100 150 200 250 300 350 400 450 6SRM18-3 6SR18-3 2.2 3 Head(m)
43 41 40 38 35 32 27 22 16 9 6SRM18-4 6SR18-4 3 4 57 55 53 51 47 42 36 29 21 12 6SRM18-5 6SR18-5 4 5.5 72 69 67 64 59 53 45 36 26 15 6SRM18-6 6SR18-6 5.5 7.5 86 83 80 76 71 63 55 44 32 18 — 6SR18-7 5.5 7.5 101 97 94 89 83 74 64 51 37 21 — 6SR18-9 7.5 10 129 124 120 114 106 95 82 66 48 27 — 6SR18-11 9.2 12.5 158 152 147 140 130 116 100 80 58 33 — 6SR18-13 11 15 187 179 174 165 153 137 118 95 69 39 — 6SR18- 15 13 17.5 216 207 201 191 177 158 136 109 79 45 — 6SR18- 18 15 20 259 248 241 229 212 190 164 131 95 54 — 6SR18-20 18.5 25 287 276 267 254 236 211 182 146 106 60 — 6SR18-22 18.5 25 316 304 294 280 260 232 200 160 116 66 — 6SR18-24 22 30 345 331 321 305 283 253 218 175 127 72 — 6SR18-26 22 30 374 359 348 331 307 274 236 189 137 78 — 6SR18-28 26 35 402 386 374 356 330 295 254 204 148 84 — 6SR18-30 26 35 431 414 401 381 354 316 273 219 159 90 — 6SR18-33 30 40 474 455 441 420 389 348 300 240 174 99 — 6SR18-35 30 40 503 483 468 445 413 369 318 255 185 105
