2.5"STM
Keywords:
2.5”STM series
Category:
Description:
- Product Description
- Operation Conditions
- Performance
-
Applications
For water supply from wells or reservoirs
For domestic use, for civil and industrial applications
For garden use and irrigation
Motor and Pump
Rewindable motor
Single-phase:220-240V/50Hz
Equip with start control box or digital auto-control box
Pumps are designed by casing stressed
Curve tolerance according to ISO 9906
Options on request
Special mechanical seal
Other voltages or frequency 60Hz
Single phase motor with built-in capacitor
-
Maximum fluid temperature up to +35℃
Maximum sand content:0.25%
2.5ST minimum well diameter:2.5" -

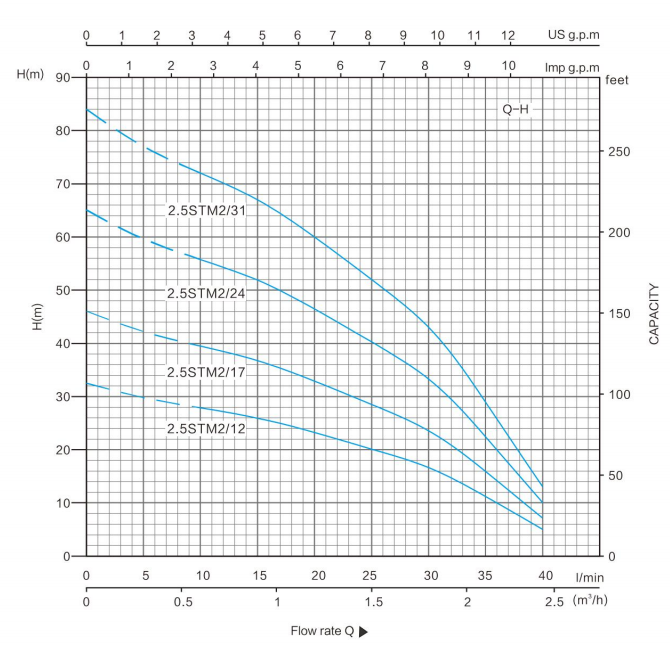

Performance chartn≈2850rpm
PERFORMANCE DATA 50Hz
MODEL POWER DELIVERY n≈2850 l/ min 1~
220-240VkW HP m³/h 0 0.3 0.6 0.9 1.2 1.5 1.8 2.1 2.4 l/min 0 5 10 15 20 25 30 35 40 2.5STM2/12 0.18 0.25 H(m) 33 30 28 26 23 20 17 11 5 2.5STM2/17 0.25 0.33 46 42 39 39 33 29 24 16 7 2.5STM2/24 0.37 0.5 65 60 56 56 46 40 33 22 10 2.5STM2/31 0.55 0.75 84 77 72 72 60 52 43 29 13 DIMENSIONS AND WEIGHTS
MODEL DN DIMENSIONS(mm) WEIGHT(kg) 1~
220-240VP M T φD L P M T 2.5STM2/12 1 437 445 882 φ65 66 3.3 6.9 10.2 2.5STM2/17 1 570 578 1148 φ65 66 3.8 7.6 11.4 2.5STM2/24 1 779 787 1546 φ65 66 4.1 8.2 12.3 2.5STM2/31 1 993 1001 1994 φ65 66 4.4 8.9 13.3
