6SR45
Keywords:
6SR series
Category:
Description:
- Product Description
- Operation Conditions
- Performance
-
Applications
For water supply from wells or reservoir
For domestic use, for civil and industrial application
For garden use and irrigationMotor and Pump
Rewindable motor or Full obturated screen motor
Three-phase:380V-415V/50Hz
Direct start(1cable)
Star-delta start(2cable)
Equip with start contol box or digital
auto-control box
NEMA dimension standards
Curve tolerance according to ISO 2548Options on request
Special mechanical seal
Other coltages or frequency 60HzWarranty:1 year
(according to our general sales conditions).
-
Maximum fluid temperature up to +35℃
Maximum sand content:0.25%
Maximum immersion:100m.
Minimum well diameter:6" -

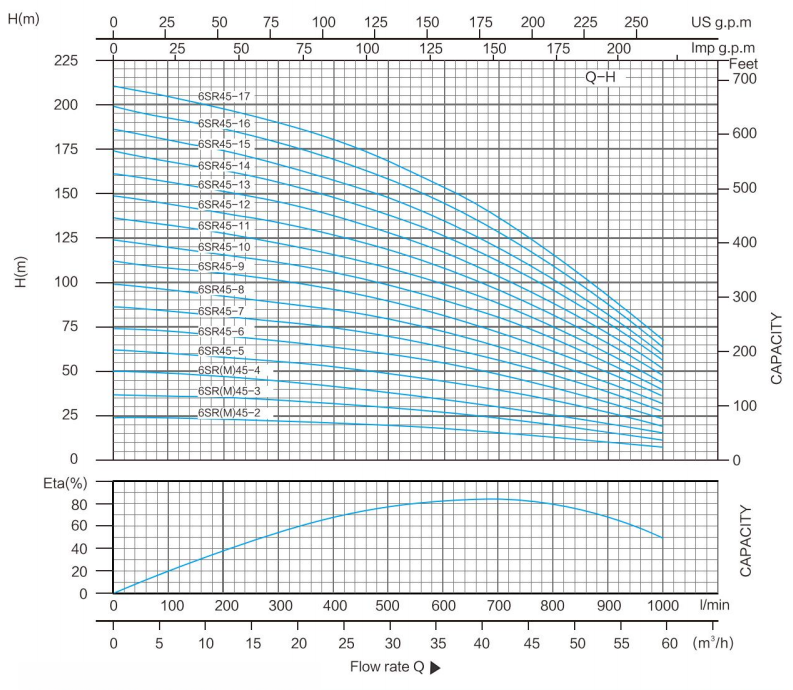

PERFORMANCE DATA 50Hz
Model P₂ DELIVERY n≈2850 l/ min 1~220V/240V 3~380V415V kW HP m³/h 0 6 12 19 24 30 36 42 48 54 60 l/ min 0 100 200 300 400 500 600 700 800 900 1000 6SRM45-2 6SR45-2 3 4 Head(m) 25 24 23 22 21 20 18 16 14 11 8 6SRM45-3 6SR45-3 4 5.5 37 36 35 33 32 30 27 24 20 16 12 6SRM45-4 6SR45-4 5.5 7.5 50 48 46 44 42 39 36 32 27 22 16 — 6SR45-5 7.5 10 62 60 58 55 53 49 45 40 34 27 20 — 6SR45-6 9.2 12.5 74 72 70 67 63 59 54 48 41 33 24 — 6SR45-7 11 15 87 84 81 78 74 69 63 56 48 38 28 — 6SR45-8 13 17.5 99 96 93 89 84 79 72 64 54 44 32 — 6SR45-9 15 20 112 108 104 100 96 89 81 72 61 49 36 — 6SR45-10 25 124 120 116 111 105 99 90 80 68 54 40 — 6SR45-11 25 136 132 128 122 116 108 99 88 75 60 44 — 6SR45-12 22 30 149 144 139 133 126 118 108 96 82 65 48 — 6SR45-13 22 30 161 156 151 144 137 128 117 104 88 71 52 — 6SR45-14 26 35 174 168 162 155 148 138 126 112 95 76 56 — 6SR45-15 26 35 186 180 174 167 158 148 135 120 102 82 60 — 6SR45-16 30 40 198 192 186 178 169 158 144 128 109 87 64 — 6SR45-17 30 40 211 204 197 189 179 168 153 136 116 93 68
